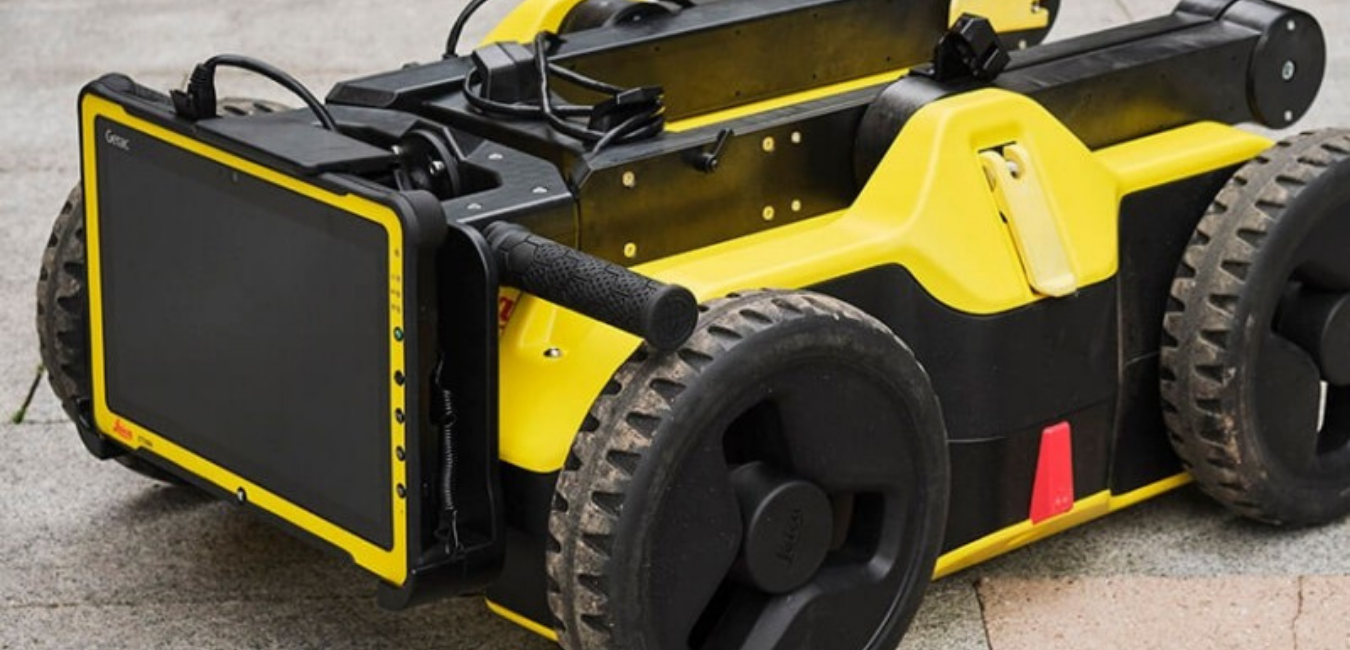

Leica DSX Utility Detection Solution

Price on Application

Category:
Description
+-

Reliable utility detection for everyone – simple detection workflow and results that anyone can understand

For utility repair and maintenance, civil engineering and surveying companies, the Leica DSX utility detection solution, consisting of a portable hardware with intuitive software allows to easily locate, visualise and map utilities. Unlike any other ground penetrating radar (GPR) system, the Leica DSX maximises productivity with cutting-edge software that automates data analysis and creates a 3D utility map on the field.

Central Frequency

Ease of Use

  • Ensure smooth and accurate underground utility detection without expert knowledge
  • Complete utility detection and mapping in just a few steps through intuitive user interface
  • Scan anywhere and at any time, even in narrow areas and under severe conditions

Reliable Detection Results

  • Detect all types of underground utilities in high resolution to assure reliable avoidance zones
  • Verify detected utilities with support of smart algorithm
  • Import of POI’s and utility records to help you make better decisions

Instant 2D/3D Utility Map

  • Save your time on site by mapping underground utilities in just minutes
  • Export utilities in CAD or BIM-read formats for further usage
  • Create professional reports, customised to your and your customers’ needs

Integrated Solution

  • Offer a complete workflow from acquire to excavate
  • Locate underground utilities with survey-grade accuracy
  • Generate utility maps, compatible with all coordinate reference systems

Additional Information
+-

Features:

  • Central Frequency – 600 MHz
  • Detection Depth – Up to 2m / 6.56ft
  • Acquisition Speed Up –  to 7km/h or 4.3mph
  • Scan Interval – 0.50m / 18in
  • Positioning 2 encoders on wheels; GNSS anten- na integration (Surveyor kit only)
  • Environmental – IP65
  • Battery Li-ion 14.8V / 5800mAh up to 8 hours operating time
  • Operating Temperature –10°C to +40°C / 14°F to 104°F
  • Warranty 2 years (extension CCPs available)
