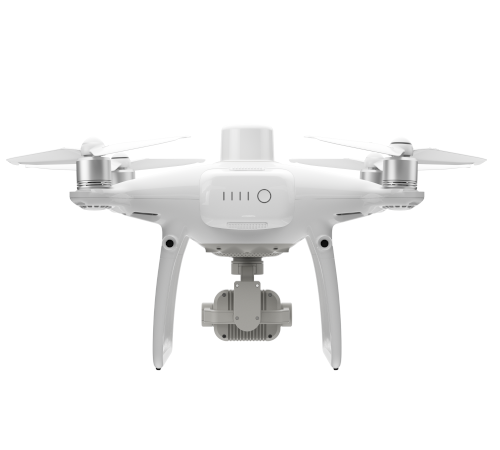

DJI P4 Multispectral
The P4 Multispectral consolidates the process of capturing data that gives insight into crop health and vegetation management. DJI has created this platform with the same powerful performance standards that DJI is known for, including 27 minutes max flight time and up to 7 km1 transmission range with the OcuSync system. Agriculture imagery collection is now simpler and more efficient than ever before with a built-in stabilized imaging system that collects comprehensive data sets right out of the box. Access information collected by 1 RGB camera and a multispectral camera array with 5 cameras covering Blue, Green, Red, Red Edge, and Near Infrared bands – all at 2 MP with global shutter, on a 3-axis stabilized gimbal. An integrated spectral sunlight sensor on top of the drone captures solar irradiance, which maximizes accuracy and consistency of data collection through different times of day. When combined with post-processed data, this information helps to obtain the most accurate NDVI results.
https://surveydrones.ie/djienterprise/dji-phantom-4-multispectral/
For more information please contact one of our offices(01) 456 8650
(021) 423 2957
Tec Specs
Aircraft – Phantom 4 PRO Multispectral
Number of Batteries – 1
Maximum Take of weight – 1.487kg
Maximum Wind Resistance – 10 meters per second
IP Rating – No IP Rating
Operating Temperatures – 0° to 40° C
Battery Type – 5870 mAh
Flight time 27 minutes
Remote Controller
Operating Frequency
– 5.72-5.850GHz
– 922.7MHz – 927.7MHz (Japan)
– 2.400 – 2.483GHz (in use with Lightbridge)
Video Outputs – USB & Mini HDMI
Dual User Capability – Master & Slave Control
Output Power & Power Supply – 9W & Internal Rechargeable Battery
Operating Temperatures – 0° to 40° C
Avoidance Systems
Forward Vision Systems YES Range 0 – 10meters
Backward Vision Systems YES Range 0 – 10meters
Downward Vision System YES Range 0 – 10meters
Side Vision System YES Range 0 – 10meters
Camera & Gimbal
RGD Camera Sensor – 1/2.9” CMOS
Shutter – Type Global shutter
Camera Types
1. Red Edge (RE): 730 nm ± 16 nm
2. Near-infrared (NIR): 840 nm ± 26 nm
3. Green (G): 560 nm ± 16 nm
4. Visible light (RGB)
5. Red (R): 650 nm ± 16 nm
6.Blue (B): 450 nm ± 16 nm
All 6 cameras at 2MP
In The Box
1 x Aircraft body
1 x Remote controller
1 x Propellers (pair)
2 x Phantom 4 High Capacity Batteries
1 x DJI Cendence Battery
1 x Phantom 4 RTK Charging Hub
